Sale!

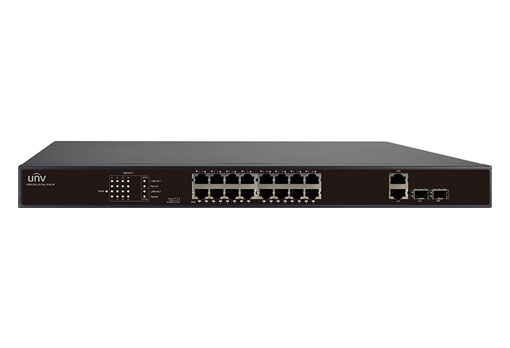

Uniview UNV 16 Port PoE+ Switch Unmanaged with 2 Gigabit-Rated Uplink Ports and Surveillance Mode for Laying Cable Runs up to 820 Feet (NSW2010-16T2GC-POE-IN)

$569.99

WHY UNIVIEW?

Uniview is the pioneer and leader of IP video surveillance.Firstly introduced IP video surveillance to China, Uniview now is the third largest player in video surveillance in China. In 2018, Uniview has the 4th largest global market share.



Uniview has complete IP video surveillance product lines including IP cameras, NVR, Encoder, Decoder, Storage, Client Software and app, covering diverse vertical markets including retail, building, industry, education, commercial, city surveillance etc.

SKU: NSW2010-16T2GC-POE-IN Categories: , , Tags: , ,

Description

Model NSW2010-6T-POE-IN NSW2010-10T-POE-IN NSW2010-16T2GC-POE-IN NSW2010-24T2GC-POE-IN
Ports 6×100Mbps network ports (RJ45),including 4 PoE ports 10×100Mbps network ports (RJ45),including 8 PoE ports 16×100Mbps PoE ports (RJ45)+2×1000Mbps Combo ports 24×100Mbps PoE ports (RJ45)+2×1000Mbps Combo ports
Standards IEEE802.3,IEEE802.3u,IEEE802.3az,IEEE802.3x,
IEEE802.3af,IEEE802.3at
IEEE802.3,IEEE802.3u,IEEE802.3z,IEEE802.3ab,
IEEE802.3x,IEEE802.3af,IEEE802.3at,IEEE802.3az
Switching capacity 1.2Gbps 2Gbps 7.2Gbps 8.8Gbps
Forwarding performance 0.90Mpps 1.49Mpps 5.36Mpps 6.55Mpps
Packet Buffer 768Kbit 1.625Mbit 4M bit 4Mbit
MAC 2K 4K 16K 16K
Dimensions (W×D×H) 160mm x 93mm x 32mm
(6.3″×3.7″×1.3″)
220mm x 150mm x 44mm(8.7″×5.9″×1.7″) 440mm x 207mm x 45mm(17.3″×8.1″×1.8″) 440mm x 207mm x 45mm(17.3″×8.1″×1.8″)
Weight <0.6kg <1.22kg <4.2kg <4.2kg
Power supply AC: 100-240V, 50/60Hz
PoE 802.3at/af
Max. PoE Power Max capacity: 65W
Max capacity for single port: 30W
Max capacity: 120W
Max capacity for single port: 30W
Max capacity: 250W
Max capacity for single port: 30W
Max capacity: 370W
Max capacity for single port: 30W
Cooling Fans 0 0 2 2
Mean Time Between Failure (MTBF) >50000 hours
Ambient temperature 0°C-45°C (32°F-113°F)
Operating humidity 10%~90% (noncondensing)
Storage humidity 5%~90% (noncondensing)
Indicator PWR:
Steady on: AC input is normal
Off: No AC input
PoE:
Off: No PoE power supply
Steady on: PoE power supply is normal
Flashing: PoE power supply is abnormal
LINK/ACT:
Off: No link
Steady: Linked at 10/100Mbps
Flashing: Transmitting data
Speed:
Off: Linked at 10/100Mbps
On: Linked at 1000Mbps
Working Mode Default(Normal mode) : All ports can communicate with each other.
EXTEND(Surveillance mode): Transmission distance up to 250 meters.
Default(Normal mode) : All ports can communicate with each other.
VLAN(Secure mode): Downlink ports can communicate only with uplink ports.
EXTEND(Surveillance mode): Transmission distance up to 250 meters.

Shipping

Items are usually
shipped from distributor/manufacturer warehouse within 1-4 business day(s).
 On rare occasions it can take longer if
item is on backorder or sold out.

 After shipping, items are usually delivered
within 1-5 business days.


Warranty

This item includes total
of 3 Year Warranty.

Additional information

Weight 3 lbs
